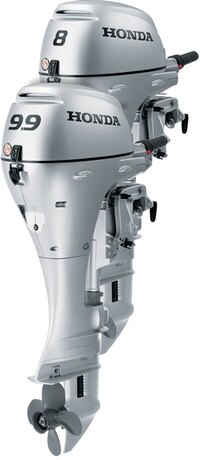

Honda BF8 |
||||||||||||||||||||||||||||||||||||||||||
Specifications
|
||||||||||||||||||||||||||||||||||||||||||
Description
|
||||||||||||||||||||||||||||||||||||||||||
FEATURES
|
||||||||||||||||||||||||||||||||||||||||||
Features
|
||||||||||||||||||||||||||||||||||||||||||
ENGINE
|
||||||||||||||||||||||||||||||||||||||||||
Type
4-Stroke SOHC; 2 Cylinders / 4 Valves
Engine
Exhaust
Under Water, above propeller
Lubrication
Forced Lubrication (Trochoid pump)
Displacement
222 cc / 13.5 cubic in.
Oil_Capacity
1.30 L (1.14 Imp. qt) with oil filter repl.
Bore_&_Stroke
58 mm x 42 mm (2.28 x 1.65 in.)
Fuel_Delivery
1 Carburetor
Cooling_System
Water Cooled
Ignition_System
PGM-IG
Recommended_Oil
SAE 10W30 API service classification SJ or later
Starting_System
Recoil
Full_Throttle_RPM_Range
4,500-5,500 RPM
|
||||||||||||||||||||||||||||||||||||||||||
DRIVE
|
||||||||||||||||||||||||||||||||||||||||||
Drive
Gear_Ratio
2.33:1
Gear_Shift
F-N-R
|
||||||||||||||||||||||||||||||||||||||||||
EQUIPMENT
|
||||||||||||||||||||||||||||||||||||||||||
Equipment
Over_Rev-Limiter
Standard
Temperature_Alert
Standard
Oil_Pressure_Alert
Standard
Alternator_(Manual_Start)
6 amp / 76 watts w/voltage regulator
|
||||||||||||||||||||||||||||||||||||||||||
DIMENSIONS
|
||||||||||||||||||||||||||||||||||||||||||
Dimensions
Overall_Width
345 mm / 13.6 in.
Transom_Height_(L-Type)
563 mm / 22.2 in.
Transom_Height_(S-Type)
432 mm / 17.0 in.
|
||||||||||||||||||||||||||||||||||||||||||
PROPELLER
|
||||||||||||||||||||||||||||||||||||||||||
Propeller_Type
4-Blade (Aluminum)
Propeller_Diameter_x_Pitch_(L-Type)
235 mm x 203 mm / 9-1/4 x 8 in.
Propeller_Diameter_x_Pitch_(S-Type)
235 mm x 229 mm / 9-1/4 x 9 in.
|
||||||||||||||||||||||||||||||||||||||||||
DRY WEIGHT
|
||||||||||||||||||||||||||||||||||||||||||
L-Type
44.5 kg / 98 lbs.
S-Type
42 kg / 93 lbs.
Dry_Weight
|
||||||||||||||||||||||||||||||||||||||||||
TRANSOM HEIGHT
|
||||||||||||||||||||||||||||||||||||||||||
Transom_Height
|
